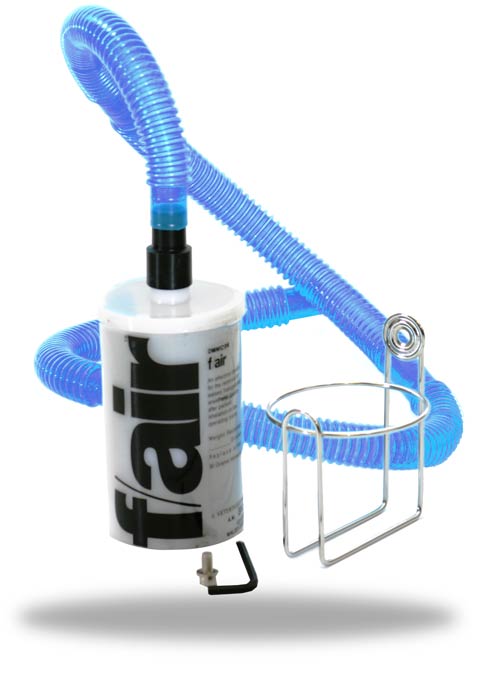

F/AIR Scavenger System
This economical and practical passive scavenger system incorporates replaceable filter cartridges to absorb waste gases. Activated charcoal filter absorbs 125% of its own weight. Kit includes one cartridge, scavenger hose, Pop-off connection adapters, and cartridge holder bracket.
|
|||||||||
Related products
- 0 to 4 lpm flow meter w/ expanded 0 to 1 scale & Flush
- Isoflurane Vaporizer w/ Inlet and Outlet adapters
- One rat/mouse nose cone circuit w/ adjustable diaphragm
- Dual Induction Kit with induction chamber and a pressure-equalized dual/splitter valve
- Hoses & connectors for nose cone & chamber
- Two scavenger circuits w/ replaceable evacuation filter cartridges
- Optional 4 or 6 Way splitter manifolds available
- 10 year warranty on machine, 3 year on vaporizer
- Made in USA.
- 6 Port Equalized Pressure Splitter Manifold w/ Tubing
- Supports 6x RES500 non-rebtreathing Nosecone Circuits
- Each port can individually be opened or closed
- Can be used with F/AIR Canisters
- ***NOTE: RES3100 and RES3200 Board are currently unavailable
- 0 to 4 lpm flow meter with expanded 0 to 1 scale
- Non-rebreathing system with 1 liter bag
- Heavy Duty stable A-frame Base
- Oxygen flush valve with safety restrictor
- Non-rebreathing circuit
- Dual O2 supply ready with check valves
- 5 year warranty *Made in USA.
Table Top Rodent Anesthesia Machine w/ Chamber & Nose Cone
Complete System Includes:
* Optional accessories include an oxygen supply hose and anti-spill adapter
| V3000PK | Rodent Table Top Anesthesia Machine – Complete System for Multiple Subjects | $2,995.00 |
|
|||||||||||||||||||||||||||||||||||||
Model 2000 and 2002 VENTILATORS
Electronically controlled, time-cycled, pressure limited ventilators.
Electronic control– Eliminates the substantial driving gas required to operate pneumatically controlled ventilators.
Time cycled– Insures consistently spaced breaths. The possibility of stacking breaths or auto-PEEP is eliminated by keeping the I:E ratio constant at 1:2. This means that regardless of the respiratory rate setting two-thirds of each breath will remain for expiration. The respiratory rate is adjustable from 6 – 40 breaths per minute (BPM).
| Volume constant — Insures that each delivered breath will have essentially the same volume, independent of changes in patient compliance and airway resistance. The deliverable tidal volume (TV) range is from approximately 20ml to 3,000ml using 3 interchangeable bellows and bellows housings as seen here. Most small animal facilities require only the small bellows attachment , seen at the left, with the standard size ventilator, center.
Pressure Limited– Provides for patient safety by limiting the maximum working pressure (MWPL) to a user adjustable pressure range of 10 – 60 cm H2O. The Model 2002 was introduced after numerous customer requests for a finer volume adjustment at the low end of the range. We added a finer volume control in parallel with the existing control on the Model 2000. Everything else about the Model 2002 is identical to the Model 2000. Both ventilators are equipped with dual airway pressure alarms that monitor and sound when the peak inspiratory pressure (PIP) of any breath either exceeds the preset maximum working pressure limit (MWPL) or fails to reach 6 cm H2O as in the case of a disconnect . A Low Supply Gas Alarm available as an option, would sound when the supply gas pressure falls below 35 psi, 2.4bar. The normal supply gas operating pressure is 50psi or 3.5bar. It is not until 35psi or 2.4bar that the ventilators delivered volume will begin to drop off proportionally with the supply pressure. |
|
|||||||||
* NOTE: Above units include 0-300 ml bellows, housing and adapter.
Optional 300 -1600 ml bellows kit is priced at $350.00
Multi Station Splitter with Nose Cones
Shown with Anesthesia machine, vaporizer, 6-port supply manifold and disct’d Surgical Board.
| Features:
|
|||||||||||||||||
|
|||||||||||||||||
NOTE: Color of base has been changed to white.
Mobile Non-rebreathing Anesthesia Machine
(vaporizer and e-tank manifold optional)
Designed for safe, simple, and controllable inhalation anesthesia for rats, small rodents, exotics, and patients weighing under 5 pounds (2.27 Kg).
| PM1002 | Mobile Anesthesia Machine w/ Well-fill Isoflurane vaporizer, Nose Cone Circuit and Double Oxygen Cylinder Manifold *Pictured | $3,290.00 | |
| PM1000 | Mobile Anesthesia Machine w/ Nose Cone Circuit *Without Vaporizer & Oxygen Cylinder Manifold |
$1430.00 | |
| PM1000V | Mobile Anesthesia Unit w/ Well-fill Isoflurane Vaporizer & Nose Cone Circuit *Without Oxygen Cylinder Manifold | $2560.00 | |
| Optional Dual Induction Kit | |||
|---|---|---|---|
| RES3011 | 6″x8″x4″ Induction Chamber & Equalized Dual Diverter Valve Manifold w/ Mounting Bracket | $415.00 | |
*Oxygen tanks not included
