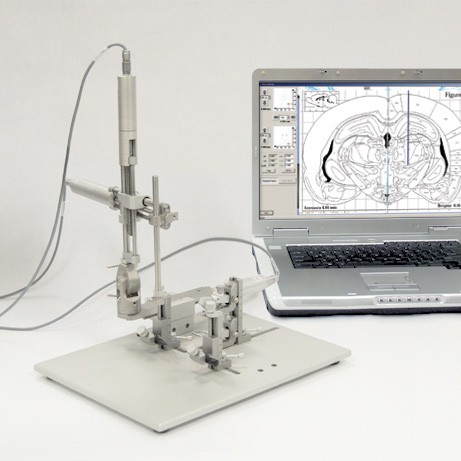

Motorized Lab|New Standard, Rat and Mouse
The Rat/Mouse Stereotaxic Instruments provide users with the ability to perform surgeries on both Mice and Rats on the same base. Motorizied versions of these Stereotaxics include customized motors and the state-of-the-art StereoDrive software to allow motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes. The intuitive movement control and integrated stereotaxic atlas enables unprecedented accuracy and higher throughput in all stereotaxic applications.
- Model 51770 (Lab Standard) includes the standard rat base with a modular mouse adapter.
- For a better explanation on the difference between Lab Standardand New Standard please refer HERE.
|
|||||||||
Related products
- Pictured is model 51903 specially for rats. Model 51503D comes with a modified base and accessories to better handle both rats and mice.
- Single manipulator model 51730D pictured. Actual model includes dual manipulators and two digital displays.
- Model 50264 (Gas Anesthesia Platform and Mouse Mask Pictured) can be used with the Mouse/Neonatal Rat Adaptor (model 51625) which is used on the ‘Rat and Mouse’ Lab Standard model stereotaxics, the Just for Mice (model 51725) or as a stand-alone platform for dorsal surgery.
- Model 50267 (Gas Anesthesia Platform and Rat Mask) allows for anesthetization and positioning of the rat outside of a stereotaxic device. It also is an ideal platform for dorsal surgery. The platform provides a means of easy movement of an anesthetized rat to and from a stereotaxic apparatus or other device.
- The Gas Anesthesia mask is installed over the incisor bar, with the cone opening toward the open “Uâ€. The animal (rat or mouse) is installed by placing its teeth over the incisor bar, and sliding the adaptor forward until the cone is snug about the animal’s nose, thereby substituting for the nose clamp. Once the teeth and the cone provide a snug, stable hold, the platform is lifted onto an appropriate stereotaxic device.
Digital Dual New Standard, Rat and Mouse
Our flexible Mouse and Rat Stereotaxic Instruments provides users with the ability to perform surgeries on both Mice and Rats on the same base. Digital Stereotaxics offers greater speed of operation and increased accuracy. The digital display helps reduce the risk of human error and increase accuracy (10-rather than 100-micron resolution). The large LED display is also useful for surgeries performed in low light, or constrained environments where reading the vernier scale is difficult.
|
|||||
Digital Dual Just for Mouse Stereotaxic Instrument
The Mouse Stereotaxic Instruments were specifically designed for use with knock-out and transgenic mice. Digital models offers greater speed of operation and increased accuracy. Fit with an easy-to-read digital display and sealed electronic sensors operation of the instrument is easy and precise. Simply move your probe to an established reference point, zero the LED display and move to the desired coordinates.
|
|||||
Mouse and Neonatal Rat Adaptor
This adaptor allows using mice and rats even if you only have a rat stereotaxic frame. This adaptor is designed for use with traditional ‘U’-framed stereotaxic instruments like the Classic Lab Standard series. Ear and bite bar heights can be independently adjusted to accommodate all needs.
|
|||||||||
Stereotaxic Gas Anesthesia Masks With Platform
Anesthesia Masks enable gas anesthesia to be used with rats and mice while operating.The Gas Anesthesia Platform and Mask models provide for precise and secure positioning of an animal during anesthesia and surgery.
|
|||||||||||||||||
