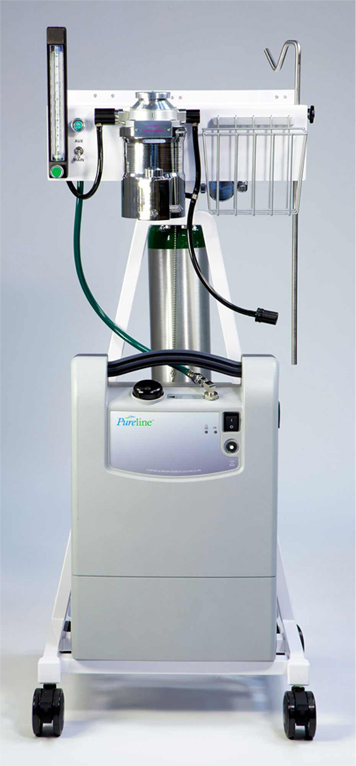

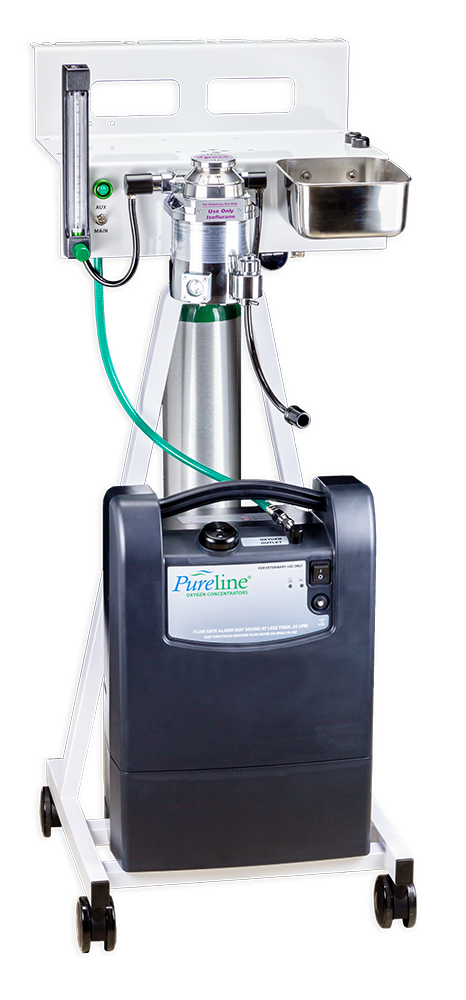

Pureline M6100 Anesthesia Machine W/ O2 Concentrator
Mobile Non-Rebreathing Anesthesia Machine w/ Oxygen Concentrator
No tanks, tank refills, or tank management! The built-in E-tank manifold allows for mobile use of the machine without power and also provides back-up in case of power failure.
- Designed specifically for small animals
- Extracts medical grade oxygen (USP93%) from the air and delivers it on demand- up to 5 LPM
- Safety back-up oxygen supply (standard E tank) with fully integrated O2 flush with industry standard 30 LPM maximum flow
- Ability to use oxygen flush with a simple built in switch
- Oxygen purity and flow-safety alarms
- Sturdy A-frame base
- 0-4LPM precision oxygen flow meter w/ mechanical stop flow control
- FDA approved, UL tested
- Quiet 40-dBA operation
- Made in the USA, state-of-the-art manufacturing with ISO quality and TUV SUV safety certifications
| Pureline M6100 Anesthesia Machine W/ O2 Concentrator Mobile Non-Rebreathing Anesthesia Machine w/ Oxygen ConcentratorNo tanks, tank refills, or tank management! The built-in E-tank manifold allows for mobile use of the machine without power and also provides back-up in case of power failure.
|
|||||||||||||
|
|||||||||||||
Related products
- 0 to 4 lpm flow meter with expanded 0 to 1 scale
- Non-rebreathing system with 1 liter bag
- Heavy Duty stable A-frame Base
- Oxygen flush valve with safety restrictor
- Non-rebreathing circuit
- Dual O2 supply ready with check valves
- 5 year warranty *Made in USA.
- Can be used with mobile base or as a table-top machine. Easily removable pins secure anesthesia machine to shelf on caster base.
- 0-4 LPM O2 flow meter with mechanical stop flow control
*Other carrier gas and LPM range flow meters available upon request. - Oxygen flush with industry standard 30 LPM safety restrictor
- Non-rebreathing design is for use with mice, rats or other small mammals.
- Compatible with any vaporizer
- Shown with optional IV Pole
- Oxygen cylinders not included. Optional Dual E-tank Yoke Available.
- Ten Year Manufacturer’s Warranty on Anesthesia Machine / 3 Year Warranty on Vaporizer
- 6 Port Equalized Pressure Splitter Manifold w/ Tubing
- Supports 6x RES500 non-rebtreathing Nosecone Circuits
- Each port can individually be opened or closed
- Can be used with F/AIR Canisters
- ***NOTE: RES3100 and RES3200 Board are currently unavailable
Mobile Non-rebreathing Anesthesia Machine
(vaporizer and e-tank manifold optional)
Designed for safe, simple, and controllable inhalation anesthesia for rats, small rodents, exotics, and patients weighing under 5 pounds (2.27 Kg).
| PM1002 | Mobile Anesthesia Machine w/ Well-fill Isoflurane vaporizer, Nose Cone Circuit and Double Oxygen Cylinder Manifold *Pictured | $3,290.00 | |
| PM1000 | Mobile Anesthesia Machine w/ Nose Cone Circuit *Without Vaporizer & Oxygen Cylinder Manifold |
$1430.00 | |
| PM1000V | Mobile Anesthesia Unit w/ Well-fill Isoflurane Vaporizer & Nose Cone Circuit *Without Oxygen Cylinder Manifold | $2560.00 | |
| Optional Dual Induction Kit | |||
|---|---|---|---|
| RES3011 | 6″x8″x4″ Induction Chamber & Equalized Dual Diverter Valve Manifold w/ Mounting Bracket | $415.00 | |
*Oxygen tanks not included
M3100 Mobile to Table-Top Convertible Anesthesia Machine
|
|||||||||
Multi Station Splitter with Nose Cones
Shown with Anesthesia machine, vaporizer, 6-port supply manifold and disct’d Surgical Board.
| Features:
|
|||||||||||||||||
|
|||||||||||||||||
NOTE: Color of base has been changed to white.
Non-rebreathing Circuit
non-rebreathing circuit (recommended for patients under 10 kgs) connects vaporizer outlet to anesthesia mask and features a a standard exhaust hose for scavenging. This item includes an anesthetic gas supply tube with 15 mm male fitting, a reservoir tube, a reservoir bag, and a 19 mm bag bleed valve. (Included with anesthesia machines)
| A518 | Non-rebreathing System | $27.00 |
