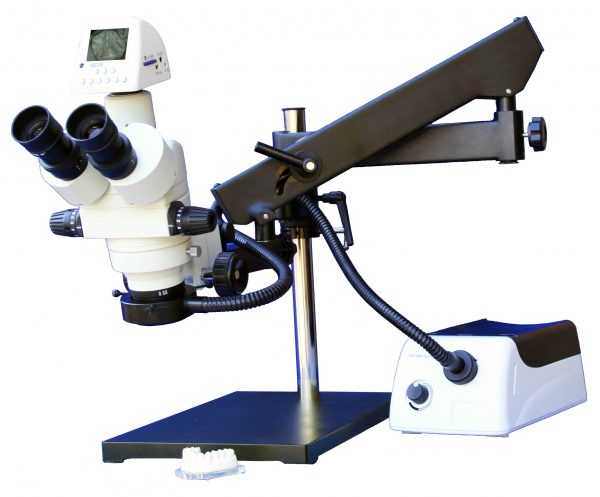

Video Zoom Scope
- Super-wide eyepieces help eliminate eyestrain
- BioVID Camera with Image Management Software
- Optional Omnivid camera with 2″ display
- 3x to 22.5x magnification (up to 45x with 1/2x reducing lens removed)
- Trinocular Head & TFT screen
- Boom Stand with Advanced Articulating Arm
- 0.5x supplementary lens
- Variable LED Ring Light w/ 60 bulbs 6400K Daylight color
- 4 controllable LED light quadrants for shadowing
- Optional Fiber-Optic Ring Light
- Easily plugs into a large monitor
|
||||||
Related products
- Video Chip: 1/3″ Color CCD
- Test Display: 24 Alphanumeric Characters (On/Off selectable)
- Backlight Comp. On/Off Selectable (6 sensing zones)
- Special Menu: Gamma, Color Adjustment, Sharpness, Contrast, Brightness, Flickerless, and Preset
- Lens: C/CS Mount, F1.2, 8mm, Manual Iris
- Power: DC12V~DC13V, 2.5W
- Operating Conditions: -10C to 50C (14F to 122F), Less than 85% Relative Humidity
- Signal System: NTSC, PAL
- Output: S-Video, BNC Composite
- Horizontal Resolution: 470 TV Lines
- Sensitivity: 0.8 Lux
- Electronic Shutter: Off/Auto/Manual
- White Balance: Selectable Auto-Tracking (ATW), Preset (AWC), and Manual
- Dimensions:
Width: 1.6″ (41mm)
Height: 1.6″ (41mm)
Depth: 2.1″ (51.6mm)
Weight: 0.31 lbs (140g) - Camera Type: 1/3 inch color C-MOS chip
- Signal: NTSC or PAL available
- Picture element: 620 x 580
- Lens: Miniature macro lens included
- Sensitivity – 5 Lux
- Microscope Compatability: Fits stand 23mm eyepiece tubes; 30mm stereoscope addapter included
- Output: 6 foot cord with Composite video, RCA plug or USB 1.1 Plug
- Camera power: 12v DC < 1 amp; Includes 110V AC adapter, 220V available
- Dimensions:
RCA
Length: 2.5″ (63mm)
Diameter: 1.25″ (32mm)
Weight: 3 ounces (85g)
USB
Length: 3.25″ (63mm)
Diameter: 1.25″ (32mm)
Weight: 3 ounces (85g) - 4X , 10X , 40X , 100X/Oil achromat Objectives
- 1.25 NA ABBE Condenser with Iris Diaphragm & Filters
- Seidentopf Head with 12.5X Eyepieces
- Optional Carry case & Car Battery Adapter
- Limited Lifetime Warranty on Stand & Optics/One Year Warranty on electronics.
BioVID Camera
The BioVID has been completely redesigned for 2003. Features include BNC-RCA and S video outputs as well as on-screen programming, allowing the user to modify and improve the image. Connect the camera to your trinocular microcope with a C or CS mount or use the included macro lens and eyepiece adapter to work with a variety of optical equipment. The BioVID directly is an excelenttoolfor demonstations and for industrial and medical applications.
Features:
| BVN110 | BioVID Camera, NTSC (also available in 220V) | $989.00 | |
| BVP110 | BioVID Camera, PAL (also available in 220V) | $979.00 | |
| BV-EZC | EZ Capture Card | $309.00 |
MiniVID Camera
The MiniVID eyepiece camera is available with an RCA output or USB connection. Plug it in to your TV, VCR, or computer. Then attach it to any microscope for instant video micrography. The innovative MiniVID eyepiece camera slips into any standard microscope eyepiece tube for crisp imaging in an instant. Or attach the miniature lens and drop it in the optional gooseneck stand for macro imaging. The MiniVID can focus as close as 1/4â€â€”out to infinity!
Features:
|
|||||||||||||
REVELATION-3 MICROSCOPE
The REVELATION 3 microscope features a rugged stand and an anti-fungal coating on the optics.The unique 12-volt/20 watt Halogen Illuminator features an optional a car adapter or portable battery for mobile or field use.
|
|||||||||||||
LED Ring Light
Fluorescent and LED ring lights offer shadow-free cold illumination with super-long-life bulbs at a reduced cost. Long thumb screws allow for easy attachment to almost any brand of microscope. The newly-redesigned fluorescent ring light is the most affordable option, and the LED models produce the most intense, focused illumination with 10,000-hour white LED bulbs. The economical 48-bulb LED ring light features variable intensity.
|
|||||||||
